Fac 67m

Fast attack

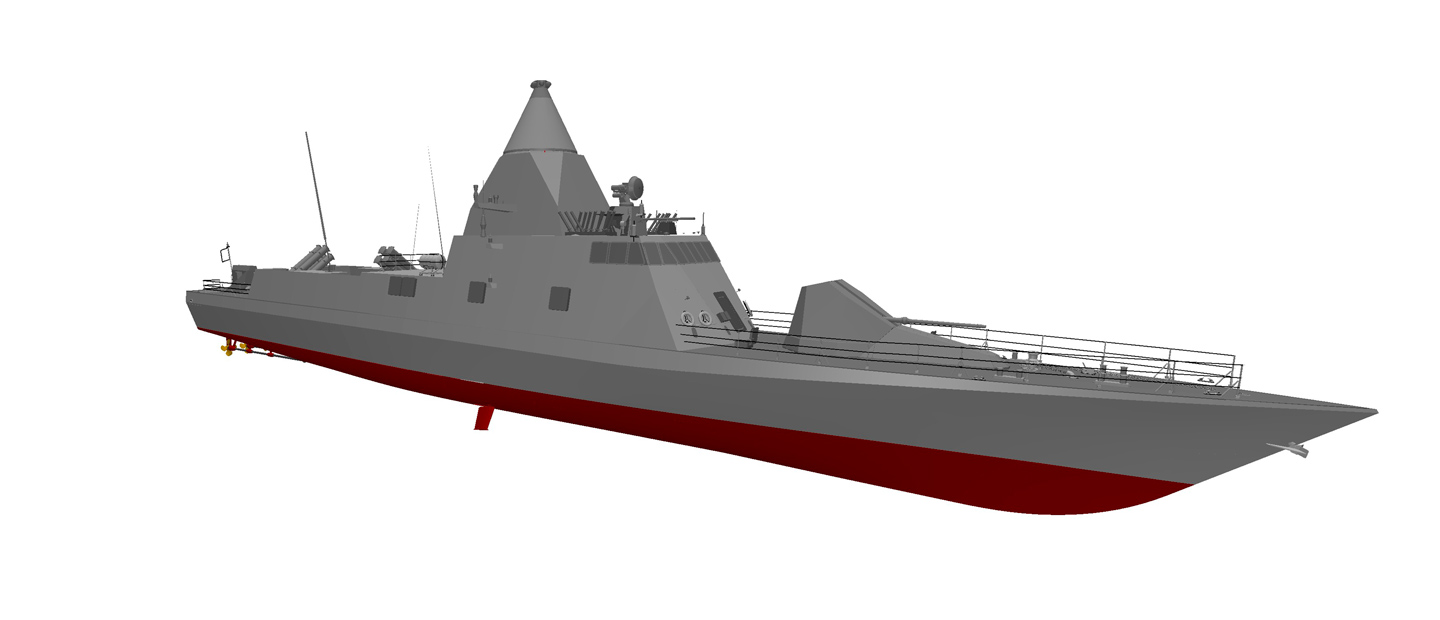

Fast Attack Craft

Fast Attack Craft feature operational capabilities that are comparable to those of larger units. The Stealth hull and topside provide space for a wide selection of different Combat Systems. These ships have extremely low Radar Cross Section and infrared signature. The propulsion system can be selected to satisfy different customer requests being able to accommodate up to four diesel engines in two different compartments.

Technical Information

main characteristics

Length overall

67.00 m

Length between perpendiculars

62.40 m

Beam

9.40 m

Depth

5.50 m

Design displacement

710 - 760 t

Speed (max/range)

27 / 14 kn

Range

1,500 nm

Endurance

14 days

ENERGY AND PROPULSION SYSTEMS

Propulsion system

4 x DE / 4 x FCPP

Generating sets

3 + 1 Emerg.

Crew

Accomodation

25 - 30 people

combat system

1 76 mm SR main gun (stealth version)

1 Radar/EO Fire Control System

1 3D Surveillance Radar + Identification Friend or Foe

1 Combat Management System with Data Link

1 Navigation system

1 Navigation Radar with LPI component

1 Radar Electronic Support Measures

1 Ship to Ship Missile (2 x 2)

1 Ship to Air Missile (2 x 3)

1 Anti-Air Warfare Decoy Launching System (2 launchers)

2 12.7 mm Machine Guns

1 Data Distribution Unit

1 External Communication System

1 Internal Communication System

1 EW System (RESM/CESM, RECM)
