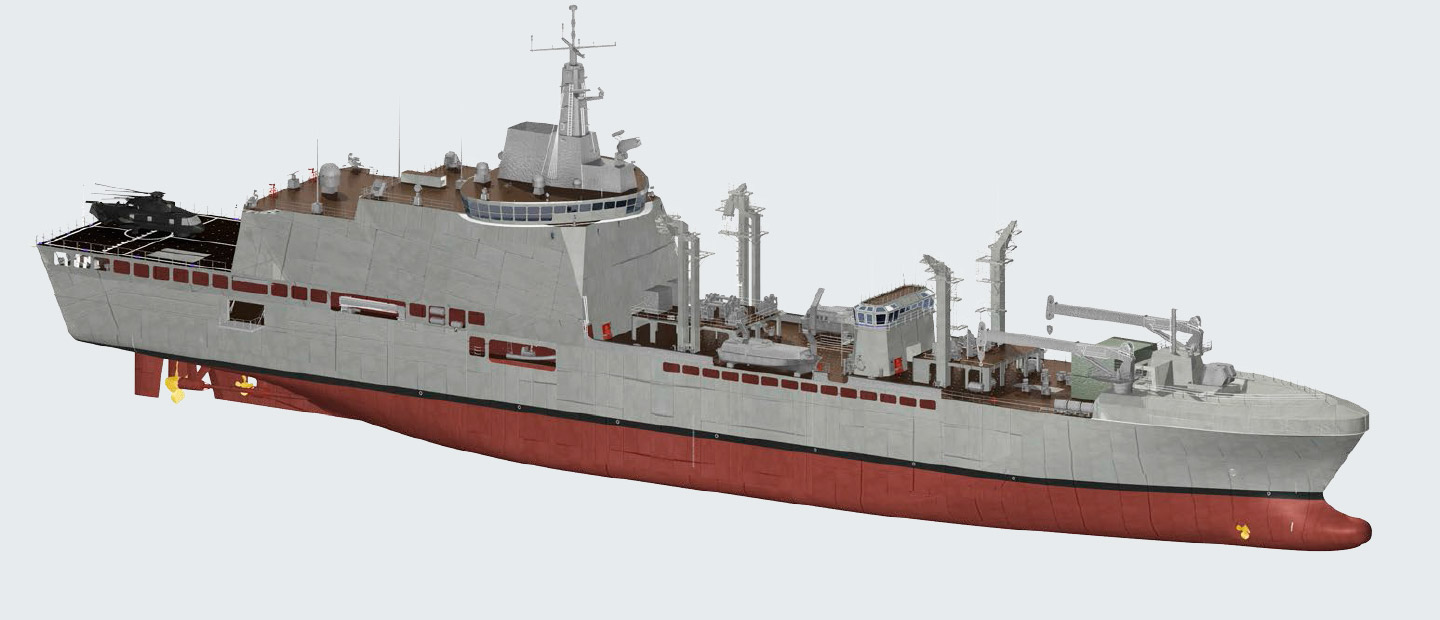

Logistic Support Ship

Logistic Support Ships

Commissioning Italian Navy

Technical Information

main characteristics

Length overall

179.00 m

Length between perpendiculars

164.90 m

Beam

24.00 m

Depth

16.30 m

Speed (max/range)

20/16 kn

Range

7,000 nm

Endurance

30 days

Crew

180-200 people

ENERGY AND PROPULSION SYSTEMS

Propulsion system

CODLAD (2 x DE +2 EM / 2 x FCPP)

Generating sets

4 + 2 Shaft generators + 1 Emerg.

HELO CAPABILITIES

Flight deck

for NH90 or EH101

Hangar

for 2 EH101

combat system

1 Internal Networking System

1 Combat Management System (CMS)

1 Integrated Int/Ext Communication System

1 Integrated Navigation System

2 Navigation Radars

1 Helo Decking Radar

1 2D Surveillance Radar 2D RAN 21S

1 IFF Interrogator System

1 IFF Transponder System

1 IR Surveillance System (2 turrets)

2 Secondary Caliber Guns - 25 mm

2 Long Range Acoustic Devices

1 Obstacle Avoidance Sonar

1 Diver Detection Sonar

1 EW System (RESM/CESM)*

1 Fire Control System (ADT)*

1 Quick Point Device System (2 Pointing Devices)*

1 Main Caliber Gun - 76 mm SR*

1 Decoy Launching System (2 Launchers)**

1 Torpedo Detection System**

1 Reaction Management System**

1 Bathy Termograph Unit**

* Fitted for

** Space foreseen for
