S1000
Submarines

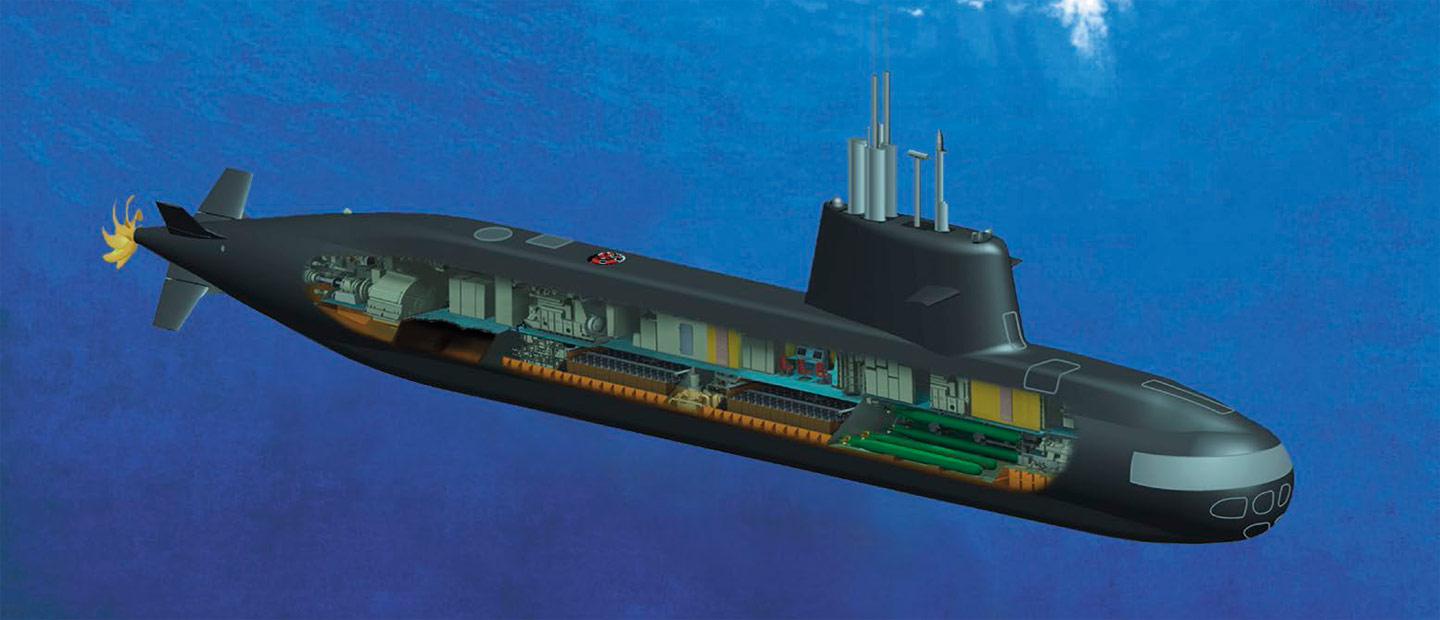

S1000
The S1000 design is the result of the cooperation between Fincantieri and Russian Partner State-Owned Enterprise Central Design Bureau For Marine Engineering “RUBIN” (under the aegis of Russian Federal State Unitary Enterprise “ROSOBORONEXPORT“).
Technical Information
main characteristics
Length overall
57.20 m
Outer diameter of pressure hull
5.50 m
Submerged displacement
abt 1,100 t
Surface displacement (ready to dive)
1,000 t
Diving depth
250 m
Draft
5.40 m
Stern rudders
4 x type
Maximum submerged speed
14 kn
Transit speed
6 kn
Patrol speed
4 kn
Cruising range under snorkel and storage battery:
• during transit
1,500 nm
• during patrol
2,000 nm
Crew + special forces
16 + 6
Endurance
30 days
1 Propeller shaft
Propulsion plant
1 multi electronic permanent magnet propulsion motor
1,000 kW
Diesel engines (turbocharged)
2 x 715 kW
Generators
2 x 650 kW
2 Battery Banks of 112 Lead Cells each in 2 separate compartments
AIP capability (Fuel cell based)
200 kW
1 Propeller shaft, 7 skewed blades
combat system
6 Fwd Torpedo Tubes (Push-Out Type) with capability to manage a combination of up to 6 + 8:
• 21 inches (533 mm) Wire Guided Torpedoes
• Antiship/Strike Missiles
1 Bottom Mines Torpedo Countermeasures System (Emulator/Decoy)
5 Multifunction CMS Consoles, Integrating sensors and navigation
1 Passive/Active Sonar Suite (Conformal Array, Intercept Array, Mine Avoidance, ONA)
1 Integrated Navigation System
1 Underwater Telephone
1 Optronic Mast (TV IR, Laser Range Finder/ESM early warning)
1 ESM, for automatic intercepted radar classification through own libraries
1 Navigation Radar with ARPA facilities
1 Internal Communication System
2 Integrated external communication masts for voice and data communications in the frequencies HF, UHF, UHF-SATCOM, VHF
1 VLF antenna
