NAVE ELETTRA
Scroll to Explore

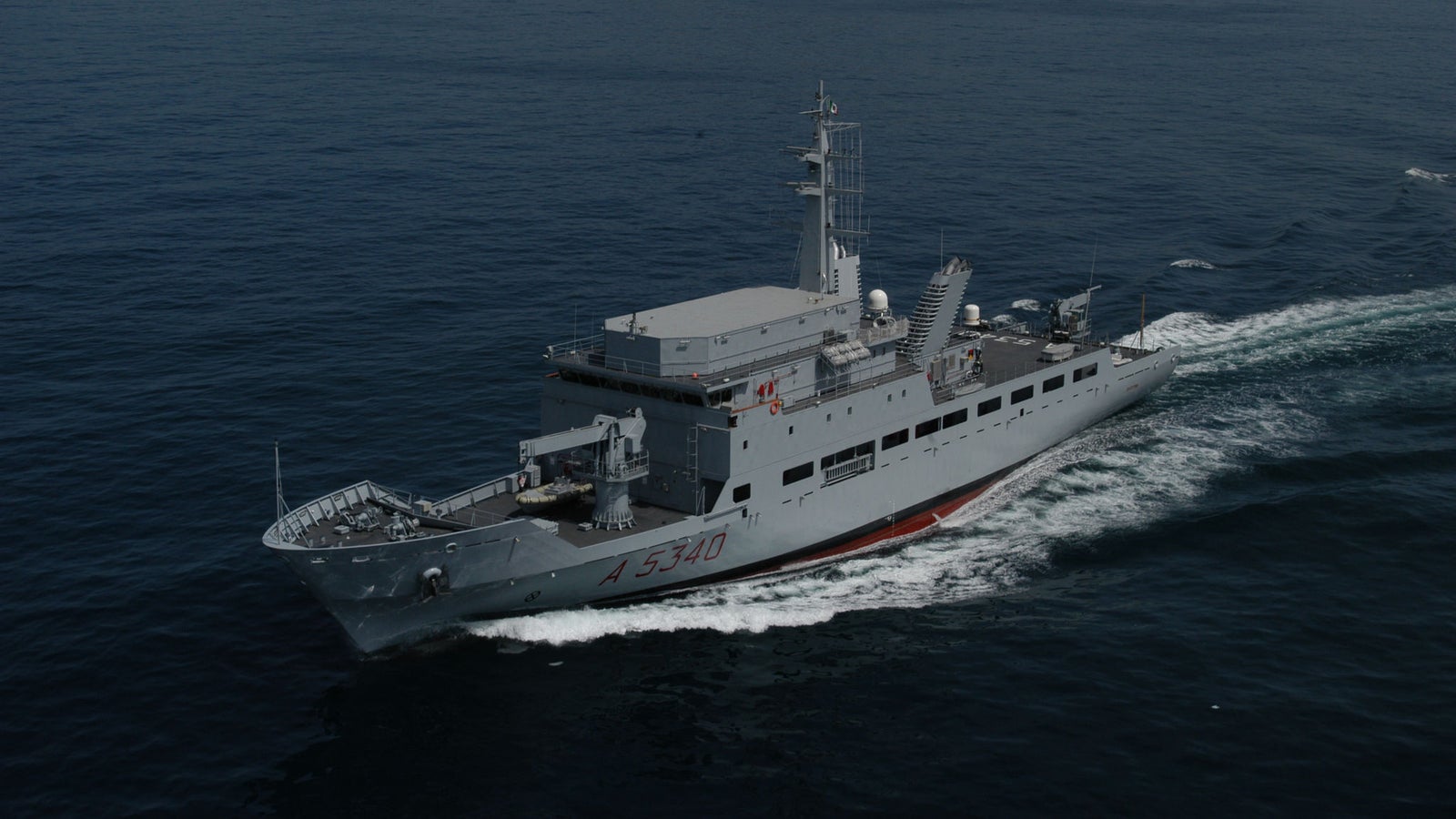

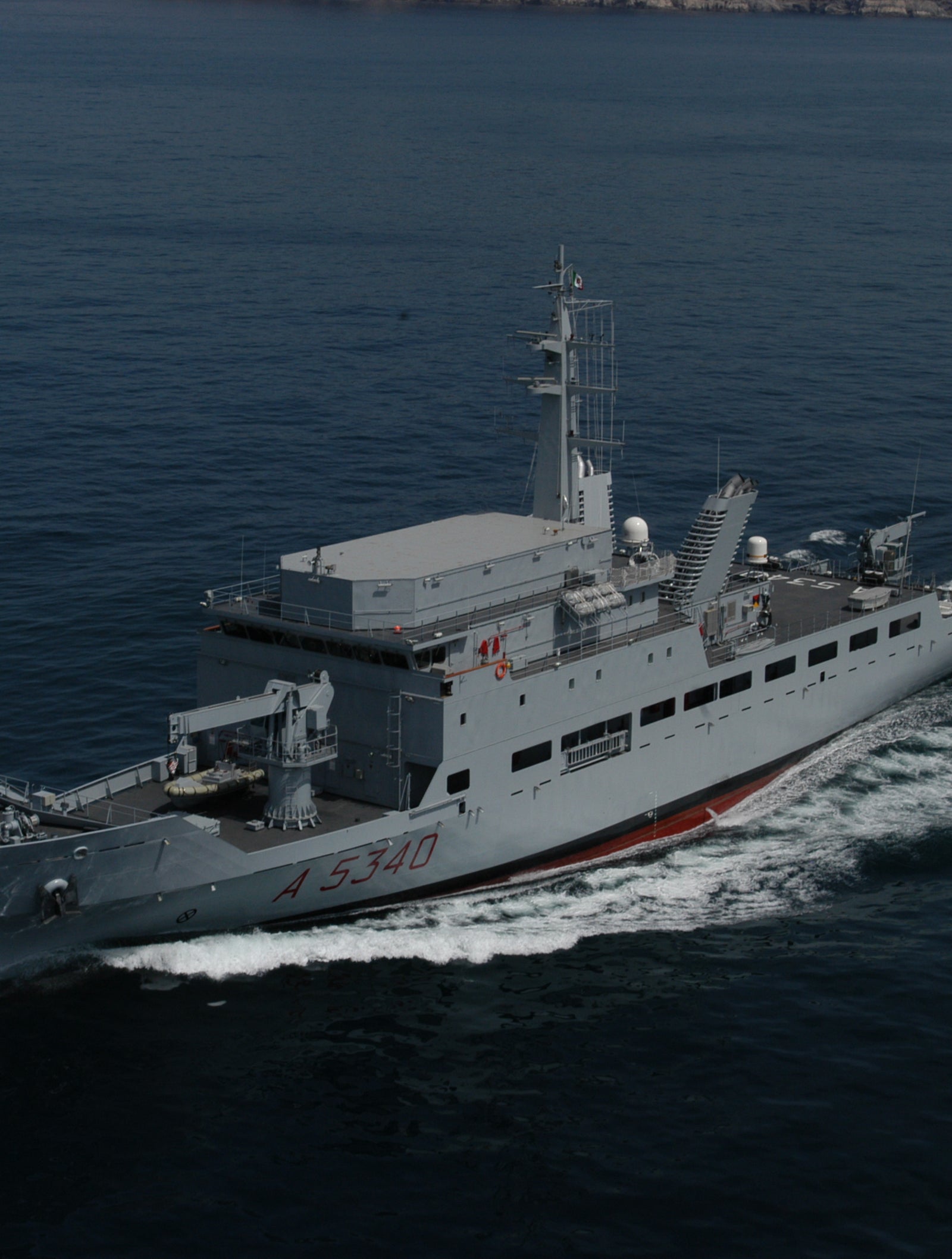

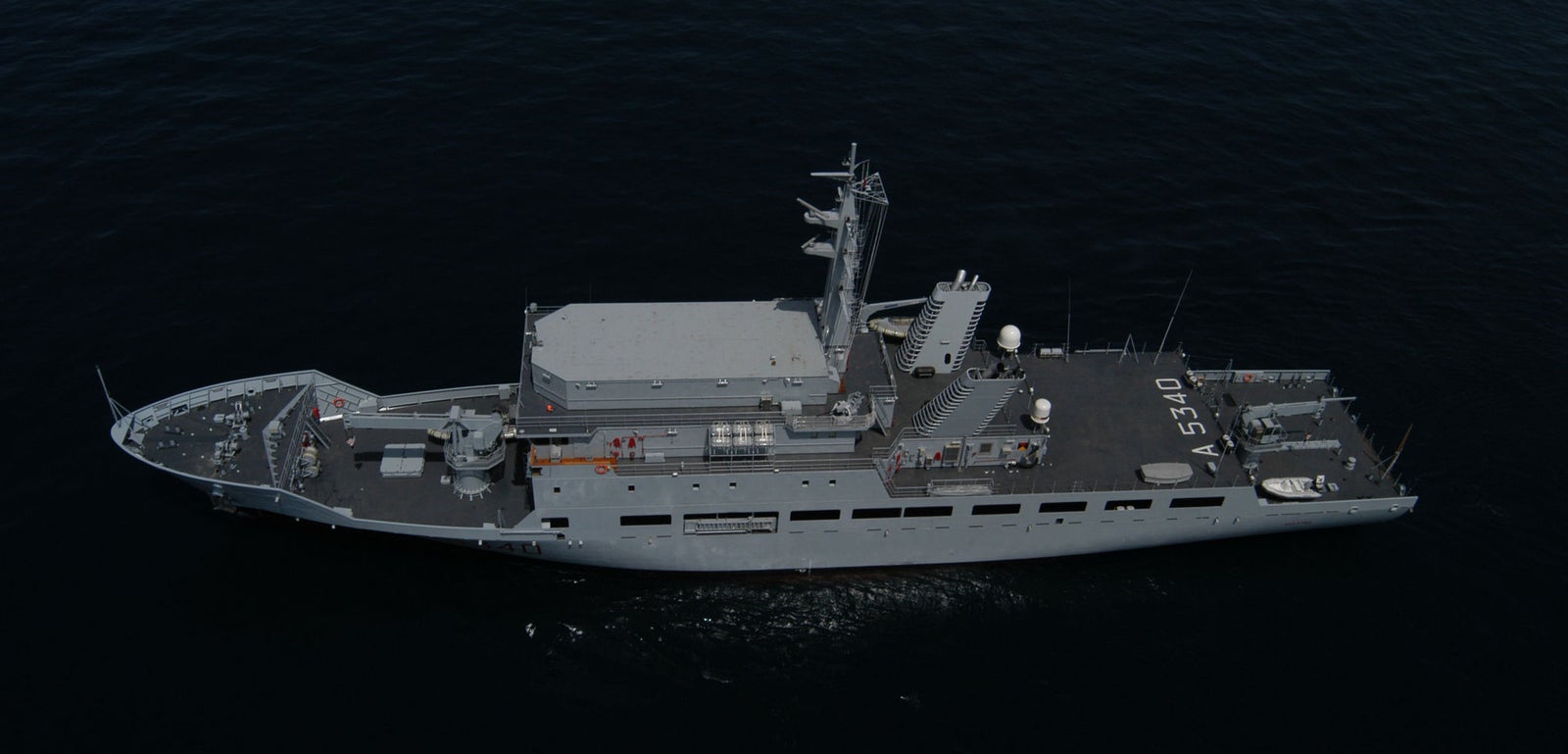

Elettra, derived from Alliance, is designed for research and surveillance activities. He is the first surface ship with propulsion based on two permanent magnet electric motors. The system ensures high reliability and efficiency, low maintenance, and extremely reduced noise radiated into the water.

DELIVERY 2003
MAIN CHARACTERISTICS
DOWNLOAD

LENGTH OVERALL (M) = 93.00

LENGTH BETWEEN PERPENDICULARS (M) = 82.00

BEAM (M) = 15.50

Nave Elettra
Nave Elettra

DEPTH WEATHER DECK (M) = 8.70

DRAFT (M) = 4.83

FULL LOAD DISPLACEMENT (T) = 3,000

PROPULSION (KW) = 2 PERMANENT MAGNET ELECTRIC MOTORS (2 X 1,500)

ELECTRIC GENERATORS
PROPULSION D.G. (KW) = 2 x 2,200
HARBOUR D.G. (KW) = 2 x 624
PROPELLERS = 2
RUDDERS = 2
BOW THRUSTER (KW) = 1 x 400
MAX SPEED (KN) = 16.5
RANGE AT 12 KN (NM) = 8,000
Nave Elettra
NAVIGATION SYSTEM

2 X-BAND NAVIGATION RADAR

1 EM SHIP LOG

1 ECHO SOUNDER

2 GYRO - COMPASS

1 AUTOMATIC PILOT

1 GMDSS COMMUNICATION SYSTEM

1 INTEGRATED DEFENSE SYSTEM (1 COMINT, 1 EMINT, 1 ELINT)
