Deepak Class

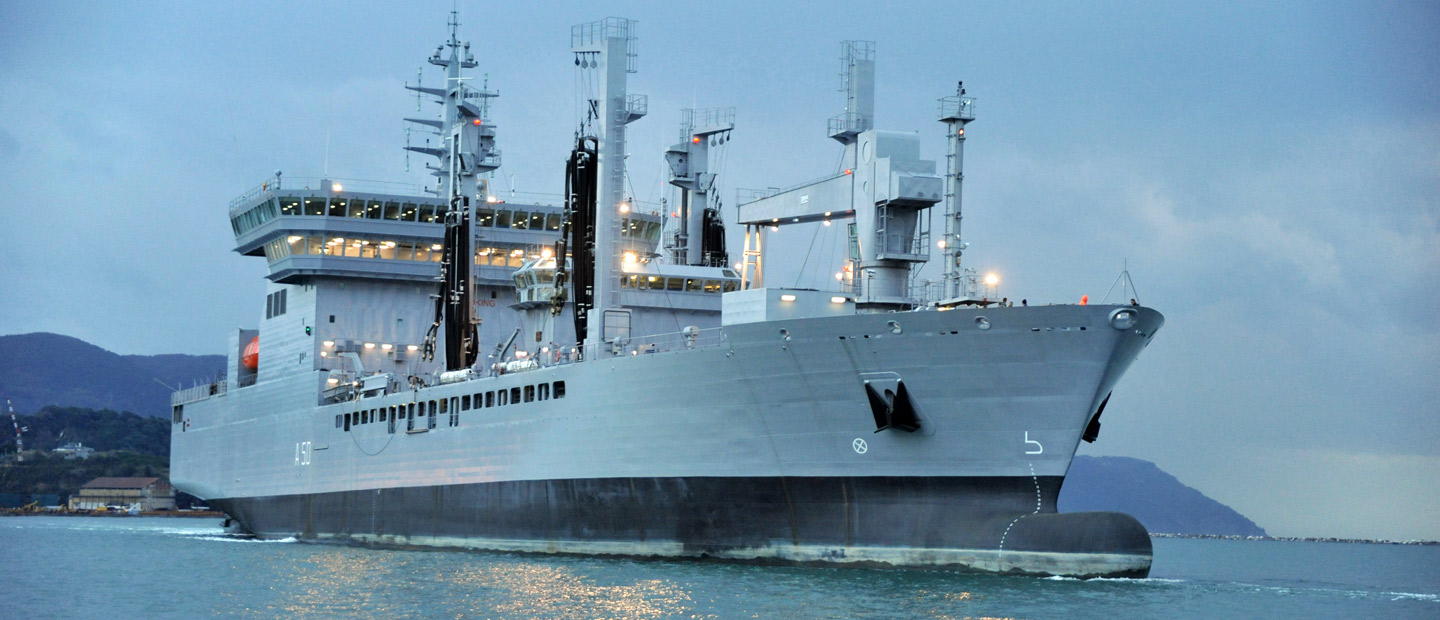

Logistic Support Ships
Rifornitrice di Squadra 27500 t
Vessel size, transport capacity and support capability are well suited to the roles the navies have to play both in their national areas and abroad.
The ships are equipped with facilities enabling them to support operations such as relief missions and acts as a mobile logistic support unit for task forces required to operate in the various operational scenarios.
| Commissioning | Indian Navy |
| Deepak | 2011 |
| Shakti | 2011 |
Technical Information
main characteristics
Length overall
175.00 m
Length between perpendiculars
162.70 m
Moulded breadth
25.00 m
Depth to flight deck (Deck 01)
19.30 m
Depth to main deck (Deck 1)
16.30 m
Full load displacement
27,500 t
Corresponding draft from B.L.
9.10 m
Ship mobile cargoes
2,100 t
Transported useful cargoes
15,760 t
RAS speed
14 -16 kn
Cruise speed
16 kn
Max speed at full load
20 kn
Range at 16 kn
10,000 nm
Crew + additional personnel
248 people
ENERGY AND PROPULSION SYSTEM
MCR of Propulsion diesel engines
2 x 9,600 kW
4 DD/GG sets
Eng. 1,600 kW - Gen. 1,500 kWe - 50 Hz each
Handling and Lifting Mechanisms
•1 30 t deck crane 4-18 m outreach
• 1 Elevator 7 t
1 Bow thruster driven by a 1,500 kW electric motor One rudder
Flight deck for landing of helicopters up to ALH or SK 42 C
One hangar to recover either ALH or SK 42 C helicopter types
Double hull, responding to the new MARPOL rules on environmental protection
Capability to refuel 4 ships at time
combat system
1 Combat Management System
1 Navigation System
1 Communication System
2 Navigation Radars
2 E/O FCS
1 IFF Transponder
1 ESM
1 CESM
1 DLS
1 ATDS (fitted for 2 launchers)
1 SAM (fitted for 2 launchers)
4 30 mm Machine Guns
4 12.7 mm + 4 7.62 mm Machine Guns
1 XBT
