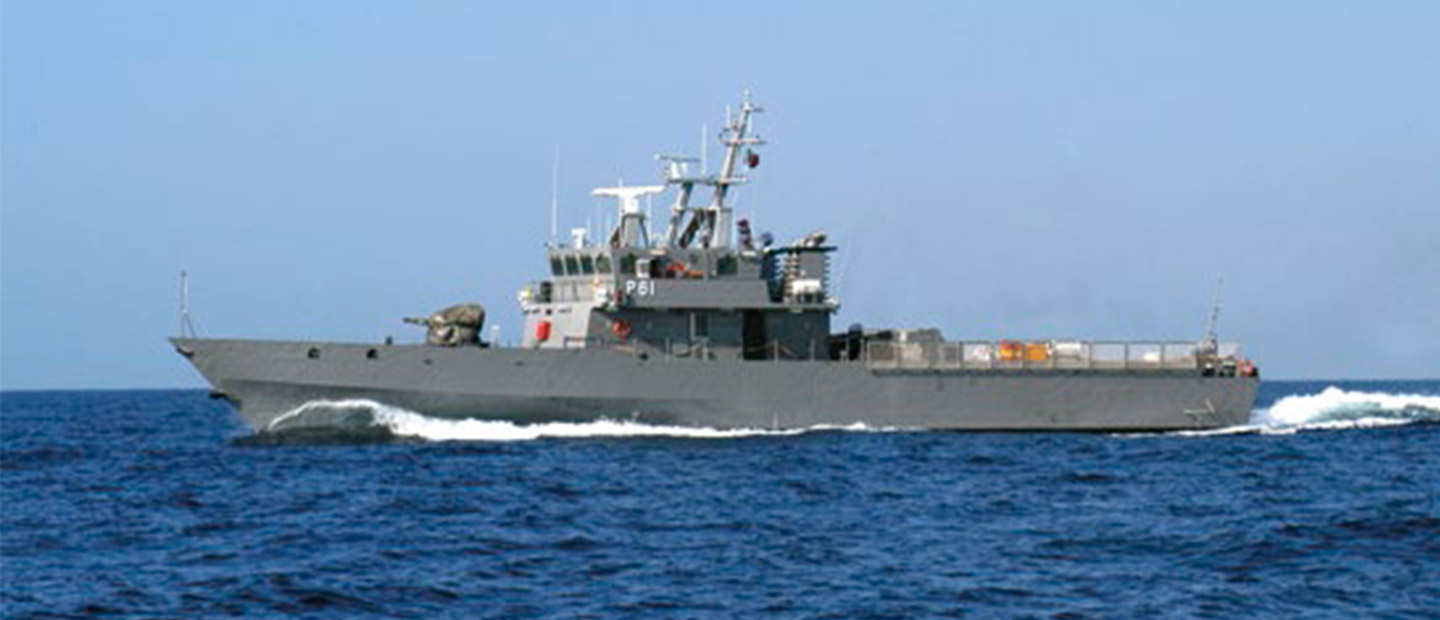

Saettia mk3

Inshore Patrol Vessels

inshore Patrol

These ships enable coast guards to upgrade their institutional activities of patrolling and safeguarding national waters. High operational flexibility enables operations to be carried out in many different roles such as patrolling blue waters, anti pollution operations, assisting other craft in difficulty, search and rescue operations. Such vessels have a length of 50÷55 metres and can reach a maximum speed ranging from 23 up to above 30 knots as a function of the chosen propulsion system.

Commissioning  Armed Forces of Malta
P61 2005

Technical Information

main characteristics

Length overall

53.40 m

Length between perpendiculars

47.20 m

Moulded breadth

8.10 m

Depth

5.40 m

Full load displacement

391 t

Corresponding moulded draught

2.10 m

Sea trial displacement

360 t

Corresponding moulded draught

2.10 m

Diesel engines

(I.F. VL1716T2 MSD- max 2 360 kW each)

Diesel generators

3 DD/GG (3x208 kW)

Propellers

2 controllable pitch

Rudders

2

Bow thruster

1

Max speed

23 kn

Range at 16 kn

2,100 nm

Service craft

2 RHIB

Crew

23+2 people

Gun

1 x 20 ÷ 30 mm

Surveillance system

Electro-Optical System

Radar-navigation and anti-collision

1 band 1S band

Communication system

GMDSS

HELO CAPABILITIES

Flight deck for AB212
