SIRIO class
Offshore Patrol Vessels

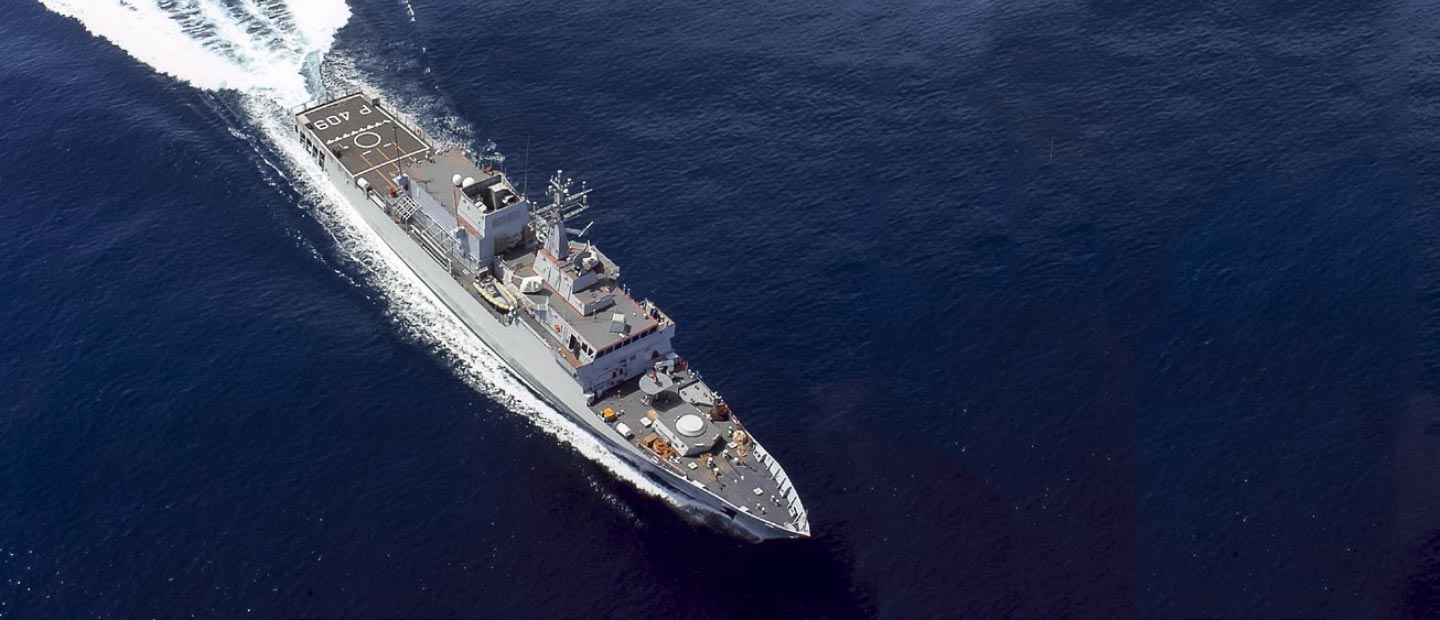

Sirio Class
The main mission of Offshore Patrol Vessels is to safeguard national interests through patrolling activities and carry out anti-pollution and rescue services. The aft area is often fitted with a flight deck for the take-off and landing operations of one mediumsized helicopter. Typical features of such vessels are the extensive range as well as sea-keeping and manoeuvrability performances, which make them highly flexible from the operational point of view.
main characteristics
Length overall
88.60 m
Length between perpendiculars
80.00 m
Max breadth
12.20 m
Depth
8.20 m
Full load displacement
1,580 t
Corresponding moulded draught
3.43 m
Max continuous speed
≥ 22 kn
Range at 17 kn
abt. 3,300 nm
ENERGY AND PROPULSION SYSTEMS
Diesel engines WARTSILA W12 V 26XN
2 x 4,320 kW
Diesel generators
3 x 750 kVA
Primary power
390 V - 50 Hz
Rudders
2
Feathering C.P. propellers
2
Stabilizers
2 active fins
HELO CAPABILITIES
Flight deck for AB212 or NH90
CREW
Commanding Officer
1
Officers
9
Senior Petty Officers
30
Junior P.O. / Senior Ratings
18
Junior Ratings
12
Total
70
combat system
1 Combat Management System
1 Main Calibre Gun - 76 mm (fitted for)
2 Secondary Calibre Guns - 25 mm
1 2D Search radar
1 Fire Control System (fitted for)
1 Electronic Warfare System (fitted for)
1 Integrated Communication System
1 Identification Friend or Foe + Transponder
1 Navigation System + METOC
1 Navigation Radar
Special Systems
Environmental pollution control
Pollution delimitation
Dispersion by chemical spraying
Polluting oil recovery
Fire - fighting support to other ships
